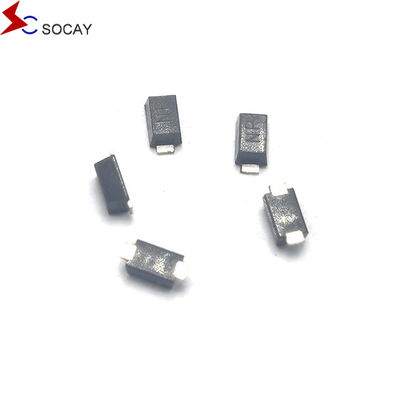

Socay TVSダイオード SMFシリーズ TVS 200W 51V 表面マウント 臨時電圧抑制器
SMF51A データシート:SMFシリーズ_v2211.1.pdf
SMF51A 記述:
The SMF series of transient voltage suppressors is designed to protect sensitive electronic equipment from transient voltages caused by lightning and other transient voltage events that can damage electronic equipment and interfere with normal use of the equipment.
| 部分番号 | 標識 | バック | 分割 | テスト | 最大 | 最大 | 最大 | |||
| ユニ | バイ | ユニ | バイ | ミニ | マックス | |||||
| SMF5.0A | SMF5.0CA | FE | KE | 5.0 | 6.40 | 7.00 | 10 | 9.2 | 21.74 | 400 |
| SMF6.0A | SMF6.0CA | FG | KG | 6.0 | 6.67 | 7.37 | 10 | 10.3 | 19.42 | 400 |
| SMF6.5A | SMF6.5CA | FK | KK | 6.5 | 7.22 | 7.98 | 10 | 11.2 | 17.86 | 200 |
| SMF7.0A | SMF7.0CA | FM | KM | 7.0 | 7.78 | 8.60 | 10 | 12.0 | 16.67 | 100 |
| SMF7.5A | SMF7.5CA | FP | KP | 7.5 | 8.33 | 9.21 | 1 | 12.9 | 15.50 | 50 |
| SMF8.0A | SMF8.0CA | FR フランス | KR | 8.0 | 8.89 | 9.83 | 1 | 13.6 | 14.71 | 25 |
| SMF8.5A | SMF8.5CA | FT | KT | 8.5 | 9.44 | 10.40 | 1 | 14.4 | 13.89 | 10 |
| SMF9.0A | SMF9.0CA | FV | KV | 9.0 | 10.00 | 11.10 | 1 | 15.4 | 12.99 | 5 |
| SMF10A | SMF10CA | 外国為替 | KX | 10.0 | 11.10 | 12.30 | 1 | 17.0 | 11.76 | 2.5 |
| SMF11A | SMF11CA | FZ | KZ | 11.0 | 12.20 | 13.50 | 1 | 18.2 | 10.99 | 2.5 |
| SMF12A | SMF12CA | HE について | LE | 12.0 | 13.30 | 14.70 | 1 | 19.9 | 10.05 | 2.5 |
| SMF13A | SMF13CA | HG | LG | 13.0 | 14.40 | 15.90 | 1 | 21.5 | 9.30 | 1 |
| SMF14A | SMF14CA | 香港 | LK | 14.0 | 15.60 | 17.20 | 1 | 23.2 | 8.62 | 1 |
| SMF15A | SMF15CA | HM | LM | 15.0 | 16.70 | 18.50 | 1 | 24.4 | 8.20 | 1 |
| SMF16A | SMF16CA | HP | LP | 16.0 | 17.80 | 19.70 | 1 | 26.0 | 7.69 | 1 |
| SMF17A | SMF17CA | HR | LR | 17.0 | 18.90 | 20.90 | 1 | 27.6 | 7.25 | 1 |
| SMF18A | SMF18CA | HT | LT | 18.0 | 20.00 | 22.10 | 1 | 29.2 | 6.85 | 1 |
| SMF19A | SMF19CA | HB | LB | 19.0 | 21.10 | 23.30 | 1 | 30.6 | 6.54 | 1 |
| SMF20A | SMF20CA | HV | LV | 20.0 | 22.20 | 24.50 | 1 | 32.4 | 6.17 | 1 |
| SMF22A | SMF22CA | Hx | LX | 22.0 | 24.0 | 26.90 | 1 | 35.5 | 5.63 | 1 |
| SMF24A | SMF24CA | HZ | LZ | 24.0 | 26.70 | 29.50 | 1 | 38.9 | 5.14 | 1 |
| SMF26A | SMF26CA | JE | ME | 26.0 | 28.90 | 31.90 | 1 | 42.1 | 4.75 | 1 |
| SMF28A | SMF28CA | JG | MG | 28.0 | 31.10 | 34.40 | 1 | 45.4 | 4.41 | 1 |
| SMF30A | SMF30CA | JK | MK | 30.0 | 33.30 | 36.80 | 1 | 48.4 | 4.13 | 1 |
| SMF33A | SMF33CA | JMさん | MM | 33.0 | 36.70 | 40.60 | 1 | 53.3 | 3.75 | 1 |
| SMF36A | SMF36CA | JP | MP | 36.0 | 40.00 | 44.20 | 1 | 58.1 | 3.44 | 1 |
| SMF40A | SMF40CA | JR | MR | 40.0 | 44.40 | 49.10 | 1 | 64.5 | 3.10 | 1 |
| SMF43A | SMF43CA | JTさん | MT 関連性 | 43.0 | 47.80 | 52.80 | 1 | 69.4 | 2.88 | 1 |
| SMF45A | SMF45CA | JV | MV | 45.0 | 50.00 | 55.30 | 1 | 72.7 | 2.75 | 1 |
| SMF48A | SMF48CA | JX | MX | 48.0 | 53.30 | 58.90 | 1 | 77.4 | 2.58 | 1 |
| SMF51A | SMF51CA | JZ | MZ | 51.0 | 56.70 | 62.70 | 1 | 82.4 | 2.43 | 1 |
| SMF54A | SMF54CA | XE | NE | 54.0 | 60.00 | 66.30 | 1 | 87.4 | 2.30 | 1 |
| SMF58A | SMF58CA | XG | NG | 58.0 | 64.40 | 71.20 | 1 | 93.6 | 2.14 | 1 |
SMF51A 特徴:
SMF51A 適用:
TVSデバイスは,通信,消費者電子機器,コンピュータおよび産業用アプリケーション,I/Oインターフェース,VCCバスおよびその他の敏感回路の保護に理想的です.
