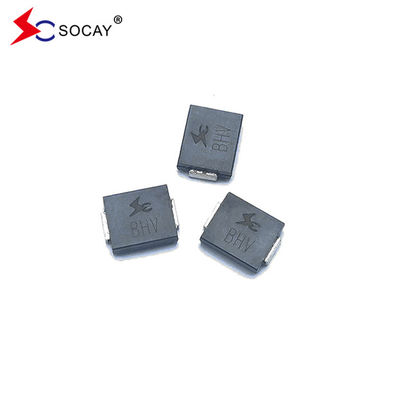

ソカイテレビSダイオード 5000w 表面マウント 臨時電圧抑制器 5.0SMDJ78 SMC
データシート:5.0SMDJ_v2107.1.pdf
5.0SMDJ78TVSダイオードプロファイル:
5.0SMDJシリーズは,雷や他の一時的な電圧事件によって引き起こされる電圧変動から敏感な電子機器を保護するために特別に設計されています.
5.0SMDJ78TVSダイオードの適用:
TVS デバイスは,I/O の保護のために理想的です
電気通信,コンピュータ,産業用および消費者電子機器で使用される VCCバスおよび他の脆弱な回路
アプリケーション
5.0SMDJ78TVSダイオード機能:
電気特性 (TA=25°C,別記がない限り)
| 部分番号 | 標識 |
バック スタンドオフ 電圧 VRWM (V) |
分割 電圧VBR (V) @IT |
テスト 流動 私はT (mA) |
最大 固定 電圧 VC について @IPP(V) |
最大 頂点 パルス 流動 私はPP(A) |
最大 バック 漏れ私はR @VRWM (μA について) |
|||
| ユニ | バイ | Uニ | バイ | ミニ | マックス | |||||
| ほら | 5.0SMDJ8.0CA | ほら | 5BDP | 8.0 | 8.89 | 9.83 | 1 | 13.6 | 367.60 | 100 |
| 5.0SMDJ11A | 5.0SMDJ11CA | 5PDX | 5BDX | 11.0 | 12.20 | 13.50 | 1 | 18.2 | 277.47 | 800 |
| 5.0SMDJ12A | 5.0SMDJ12CA | 5PDZ | 5BDZ | 12.0 | 13.30 | 14.70 | 1 | 19.9 | 253.77 | 800 |
| 5.0SMDJ13A | 5.0SMDJ13CA | 5PEE | 5BEE | 13.0 | 14.40 | 15.90 | 1 | 21.5 | 234.88 | 500 |
| 5.0SMDJ14A | 5.0SMDJ14CA | 5PEG | 5BEG | 14.0 | 15.60 | 17.20 | 1 | 23.2 | 217.67 | 200 |
| 5.0SMDJ15A | 5.0SMDJ15CA | 5PEK | 5BEK | 15.0 | 16.70 | 18.50 | 1 | 24.4 | 206.97 | 100 |
| 5.0SMDJ16A | 5.0SMDJ16CA | 5PEM | 5BEM | 16.0 | 17.80 | 19.70 | 1 | 26.0 | 194.23 | 50 |
| 5.0SMDJ17A | 5.0SMDJ17CA | 5PEP | 5BEP | 17.0 | 18.90 | 20.90 | 1 | 27.6 | 182.97 | 20 |
| 5.0SMDJ18A | 5.0SMDJ18CA | 5PER | 5BER | 18.0 | 20.00 | 22.10 | 1 | 29.2 | 172.95 | 10 |
| 5.0SMDJ19A | 5.0SMDJ19CA | 5PET | 5BET | 19.0 | 21.10 | 23.30 | 1 | 30.8 | 164.07 | 10 |
| 5.0SMDJ20A | 5.0SMDJ20CA | 5PEV | 5BEV | 20.0 | 22.20 | 24.50 | 1 | 32.4 | 155.86 | 5 |
| 5.0SMDJ22A | 5.0SMDJ22CA | 5PEX | 5BEX | 22.0 | 24.40 | 26.90 | 1 | 35.5 | 142.25 | 5 |
| 5.0SMDJ24A | 5.0SMDJ24CA | 5PEZ | 5BEZ | 24.0 | 26.70 | 29.50 | 1 | 38.9 | 129.82 | 5 |
| 5.0SMDJ26A | 5.0SMDJ26CA | 5PFE | 5BFE | 26.0 | 28.90 | 31.90 | 1 | 42.1 | 119.95 | 5 |
| 5.0SMDJ28A | 5.0SMDJ28CA | 5PFG | 5BFG | 28.0 | 31.10 | 34.40 | 1 | 45.4 | 111.23 | 5 |
| 5.0SMDJ30A | 5.0SMDJ30CA | 5PFK | 5BFK | 30.0 | 33.30 | 36.80 | 1 | 48.4 | 104.34 | 5 |
| 5.0SMDJ33A | 5.0SMDJ33CA | 5PFM | 5BFM | 33.0 | 36.70 | 40.60 | 1 | 53.3 | 94.75 | 5 |
| 5.0SMDJ36A | 5.0SMDJ36CA | 5PFP | 5BFP | 36.0 | 40.00 | 44.20 | 1 | 58.1 | 86.92 | 5 |
| 5.0SMDJ40A | 5.0SMDJ40CA | 5PFR | 5BFR | 40.0 | 44.40 | 49.10 | 1 | 64.5 | 78.29 | 5 |
| 5.0SMDJ43A | 5.0SMDJ43CA | 5PFT | 5BFT | 43.0 | 47.80 | 52.80 | 1 | 69.4 | 72.77 | 5 |
| 5.0SMDJ45A | 5.0SMDJ45CA | 5PFV | 5BFV | 45.0 | 50.00 | 55.30 | 1 | 72.7 | 69.46 | 5 |
| 5.0SMDJ48A | 5.0SMDJ48CA | 5PFX | 5BFX | 48.0 | 53.30 | 58.90 | 1 | 77.4 | 65.25 | 5 |
| 5.0SMDJ51A | 5.0SMDJ51CA | 5PFZ | 5BFZ | 51.0 | 56.70 | 62.70 | 1 | 82.4 | 61.29 | 5 |
| 5.0SMDJ54A | 5.0SMDJ54CA | 5PGE | 5BGE | 54.0 | 60.00 | 66.30 | 1 | 87.1 | 57.98 | 5 |
| 5.0SMDJ58A | 5.0SMDJ58CA | 5PGG | 5BGG | 58.0 | 64.40 | 71.20 | 1 | 93.6 | 53.95 | 5 |
| 5.0SMDJ60A | 5.0SMDJ60CA | 5PGK | 5BGK | 60.0 | 66.70 | 73.70 | 1 | 96.8 | 52.17 | 5 |
| 5.0SMDJ64A | 5.0SMDJ64CA | 5PGM | 5BGM | 64.0 | 71.10 | 78.60 | 1 | 103.0 | 49.03 | 5 |
| 5.0SMDJ70A | 5.0SMDJ70CA | 5PGP | 5BGP | 70.0 | 77.80 | 86.00 | 1 | 113.0 | 44.69 | 5 |
| 5.0SMDJ75A | 5.0SMDJ75CA | 5PGR | 5BGR | 75.0 | 83.30 | 92.10 | 1 | 121.0 | 41.74 | 5 |
| 5.0SMDJ78A | 5.0SMDJ78CA | 5PGT | 5BGT | 78.0 | 86.70 | 95.80 | 1 | 126.0 | 40.08 | 5 |
| 5.0SMDJ80A | 5.0SMDJ80CA | 5PGB | 5BGB | 80.0 | 88.80 | 97.60 | 1 | 129.6 | 38.97 | 5 |
| 5.0SMDJ85A | 5.0SMDJ85CA | 5PGV | 5BGV | 85.0 | 94.40 | 104.00 | 1 | 137.0 | 36.86 | 5 |
| 5.0SMDJ90A | 5.0SMDJ90CA | 5PGX | 5BGX | 90.0 | 100.00 | 111.00 | 1 | 146.0 | 34.59 | 5 |
| 5.0SMDJ100A | 5.0SMDJ100CA | 5PGZ | 5BGZ | 100.0 | 111.00 | 123.00 | 1 | 162.0 | 31.17 | 5 |
| 5.0SMDJ110A | 5.0SMDJ110CA | 5PHE | 5BHE | 110.0 | 122.00 | 135.00 | 1 | 177.0 | 28.53 | 5 |
| 5.0SMDJ120A | 5.0SMDJ120CA | 5PHG | 5BHG | 120.0 | 133.00 | 147.00 | 1 | 193.0 | 26.17 | 5 |
| 5.0SMDJ130A | 5.0SMDJ130CA | 5PHK | 5BHK | 130.0 | 144.00 | 159.00 | 1 | 209.0 | 24.16 | 5 |
| 5.0SMDJ140A | 5.0SMDJ140CA | 5PHB | 5BHB | 140.0 | 155.00 | 171.00 | 1 | 226.8 | 22.27 | 5 |
| 5.0SMDJ150A | 5.0SMDJ150CA | 5PHM | 5BHM | 150.0 | 167.00 | 185.00 | 1 | 243.0 | 20.78 | 5 |
| 5.0SMDJ160A | 5.0SMDJ160CA | 5PHP | 5BHP | 160.0 | 178.00 | 197.00 | 1 | 259.0 | 19.50 | 5 |
| 5.0SMDJ170A | 5.0SMDJ170CA | 5PHR | 5BHR | 170.0 | 189.00 | 209.00 | 1 | 275.0 | 18.36 | 5 |
| 5.0SMDJ180A | 5.0SMDJ180CA | 5PHT | 5BHT | 180.0 | 201.00 | 220.00 | 1 | 291.6 | 17.32 | 5 |
| 5.0SMDJ190A | 5.0SMDJ190CA | 5PHV | 5BHV | 190.0 | 211.00 | 232.00 | 1 | 307.8 | 16.41 | 5 |
| 5.0SMDJ200A | 5.0SMDJ200CA | 5PHW | 5BHW | 200.0 | 224.00 | 247.00 | 1 | 324.0 | 9.26 | 5 |
| 5.0SMDJ220A | 5.0SMDJ220CA | 5PHX | 5BHX | 220.0 | 246.00 | 272.00 | 1 | 356.0 | 8.43 | 5 |
| 5.0SMDJ250A | 5.0SMDJ250CA | 5PHZ | 5BHZ | 250.0 | 279.00 | 309.00 | 1 | 405.0 | 7.41 | 5 |
| 5.0SMDJ300A | 5.0SMDJ300CA | 5PJE | 5BJE | 300.0 | 335.00 | 371.00 | 1 | 486.0 | 6.17 | 5 |
| 5.0SMDJ350A | 5.0SMDJ350CA | 5PJG | 5BJG | 350.0 | 391.00 | 432.00 | 1 | 567.0 | 5.29 | 5 |
| 5.0SMDJ400A | 5.0SMDJ400CA | 5PJK | 5BJK | 400.0 | 447.00 | 494.00 | 1 | 648.0 | 4.63 | 5 |
| 5.0SMDJ440A | 5.0SMDJ440CA | 5PJM | 5BJM | 440.0 | 492.00 | 543.00 | 1 | 713.0 | 4.21 | 5 |
| 最大強度 (TA=25°C,別記がない限り) | |||
| パラメータ | シンボル | 価値 | ユニット |
| ピークパルス電力の分散 10/1000μs の波形 (図1) (注1) (注2) | PPPM | 5000 | W |
| 10/1000μs の波形を持つピークパルス電流. (注1,図3) | 私はPP | 次の表を参照 | A について |
| Tで無限熱シンクでの電力分散L について=75°C | PM ((AV) | 6.5 | W |
| 前向きのピーク波動電流,8.3ms単半正弦波 (注3) | 私はFSMについて | 300 | A について |
| 一方向のみの最大瞬時の前向き電圧25A (4注) | VF について | 3.5/5.0 | V |
| 動作交差点と貯蔵温度範囲 | TJTSTG | -55から+150 | °C |
|
注記: 1図3の非繰り返しの電流パルス,T以上A について= 25°C/図2 2各端末に5.0mm×5.0mm (0.03mm厚) の銅パッドを設置する. 3. 8.3ms 単半シナス波,または同等の平方波,作業サイクル = 1分間に最大4パルス. 4VF について< 3.5V V についてBR< 200VとVF について< 6.5V V に対してBR> 201V |
|||
